DC 12V 8A 9Outputs UPS

Model No.: SIWD1208-09CB

· Rated Output (Max):  14V/9A, 126W

· Uninterruptible PSU

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· No delay battery boot up
· 100% full load burn-it test

· Work with different optional modules


￥ 0.00
0.00


Model No.: SIWD1208-09CB

· Rated Output (Max):  14V/9A, 126W

· Uninterruptible PSU

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· No delay battery boot up
· 100% full load burn-it test

· Work with different optional modules

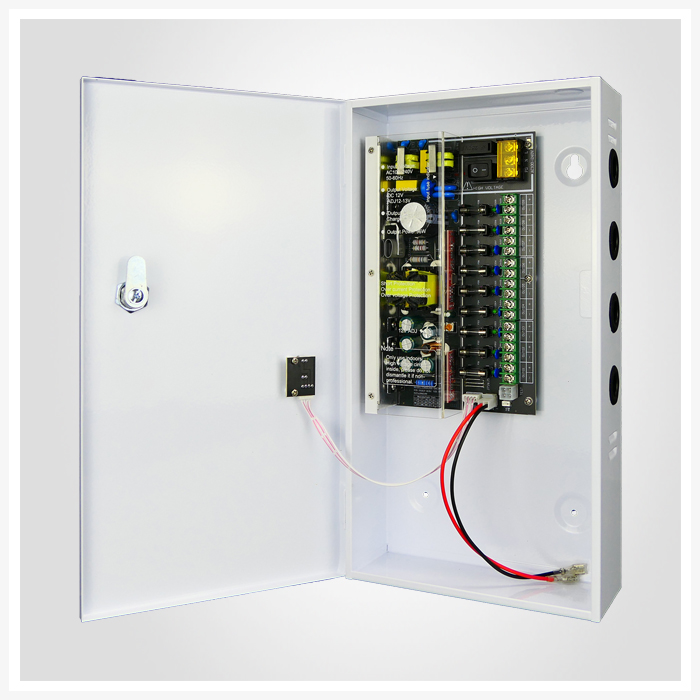

SIWD1208-09CB is an UPS power supply, its main output is 13.6V / 5A, while it also provides extra maximum 1A charge current. The PSU is designed based on 126W level. It could be used for CCTV surveillance / access control / fire alarm and other security systems.




INPUT

Voltage Range

100 - 240VAC

Frequency Range

50 - 60Hz

OUTPUT

Voltage (AC Mode)

12 - 14V adjustable

Voltage (Battery Mode)

Same as battery voltage

Rated Current

8A

Rated Power (Max.)

126W (with 14V output voltage and 1A charge current)

Efficiency (Typ.)

>85%

Ripple & Noise

<120mVp-p

Output Channel

9 channels with 1.5A glass fuse per channel.

CHARGING

Voltage

13.6V ±5%

Current

1A, Constant current

PROTECTION

Input

3A / 250VAC fuse

Overload

9.6A ±5%, Hiccup mode, recovers automatically after fault condition is removed.

Over Voltage

16V ±5%, Hiccup mode, recovers automatically after fault condition is removed.

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Battery Low Voltage

10V ±2%, PSU shuts down until AC power recovers.

Battery Reverse Connect

Battery not works, no effect on main output.

ENVIRONMENT

Temperature

Working: -20 - 50℃

Storage: -30 - 80℃

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

LED INDICATOR

Green

On

DC output is on

Red / Green

Red: Battery is fully charged or no battery

Green: Battery is charging

SAFETY & EMC

EMC Standards

EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013

LVD Standards

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013

METAL BOX & PACKING

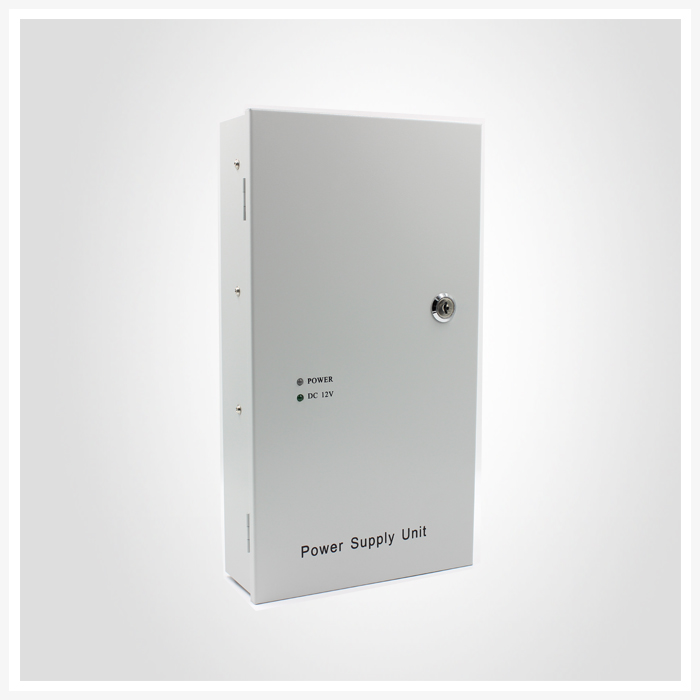

Metal Box

360 x 195 x 75mm, fits for 1 pc 12V 7Ah battery.

Packing

41.5 x 41.5 x 39.5cm / CTN, 25kg / CTN, 10pcs / CTN
