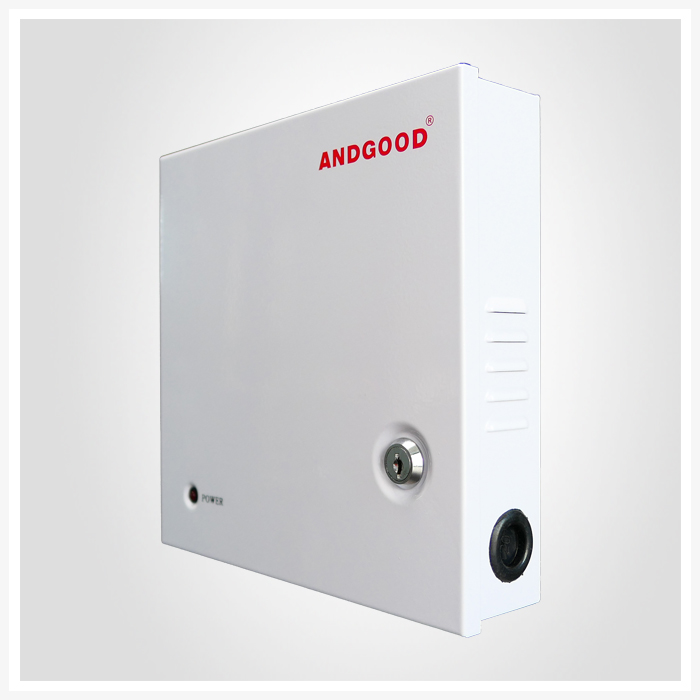

DC 12V 10A 9Outputs

Model No.:  SIWD1210-09C (H)

· Rated Output (Max):  14V/10A, 140W

· Low noise & ripple

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· Easy to facilitate the installation
· 100% full load burn-it test



0.00
0.00


Model No.:  SIWD1210-09C (H)

· Rated Output (Max):  14V/10A, 140W

· Low noise & ripple

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· Easy to facilitate the installation
· 100% full load burn-it test






SIHD1210-09C is a CCTV power supply, its main output is 12V / 10A. The PSU is designed based on 140W level.  It could be used for CCTV surveillance / access control / fire alarm and other security systems.





INPUT

Voltage Range

190 - 260VAC

Frequency Range

50 - 60Hz

Efficiency (Typ.)

>85%

OUTPUT

Voltage

12 - 14V adjustable

Rated Current

10A

Rated Power (Max.)

140W (under 14V output voltage)

Ripple & Noise

<100mVp-p

Line Regulation

±2%

Load Regulation

±2%

Output Channel

9 channels

PROTECTION

Input Fuse

5A / 250VAC

Output Fuse

1.35A / 250VAC per channel

Overload

12A ±5%, Hiccup mode, recovers automatically after fault condition is removed.

Over Voltage

16V ±5%, Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

Temperature

Working: -20 - 50

Storage: -30 - 80

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

SAFETY & EMC

EMC Standards

Complies with EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3

LVD Standards

Complies with EN 60950-1

METAL BOX & PACKING

Metal Box

200*202*50mm

Packing

43.5*31*24cm / CTN, 13kg / CTN, 10pcs / CTN, 0.033m³/CTN
