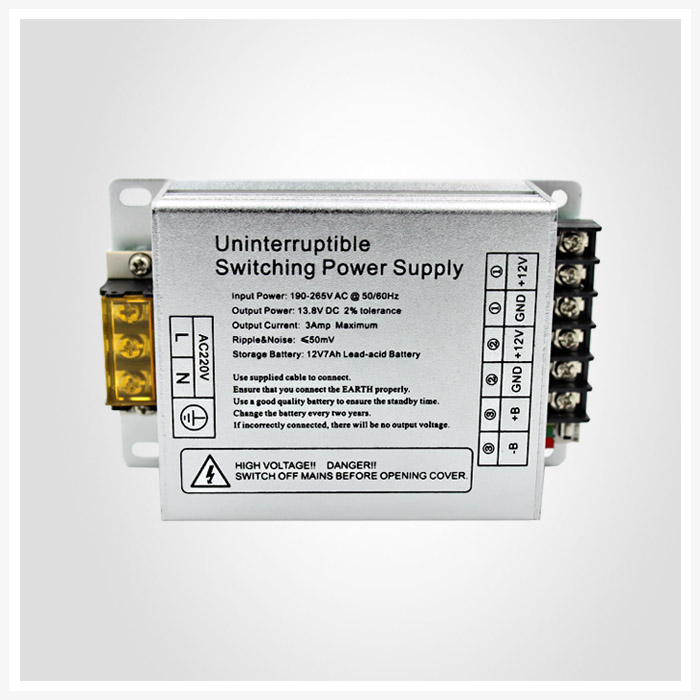

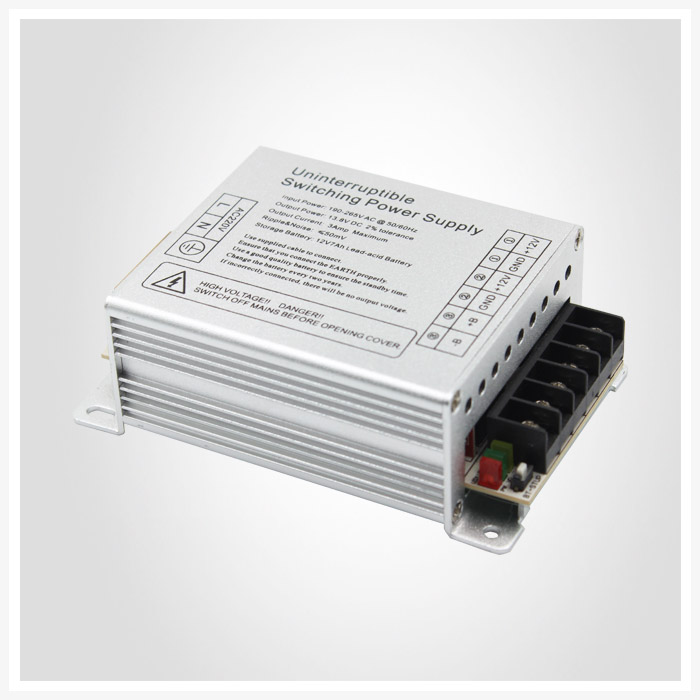

DC 12V 3A UPS - Aluminum Case

DC 12V 3A UPS - Aluminum Case

Model No.: SAHD1203-02B

· Rated Output (Max):  13.6V/4A, 54.4W

· Uninterruptible PSU

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· No delay battery boot up
· 100% full load burn-it test

· Work with different optional modules


0.00
0.00


Model No.: SAHD1203-02B

· Rated Output (Max):  13.6V/4A, 54.4W

· Uninterruptible PSU

· Metal Case With Key-lock

· 85% High efficiency

· 2 Years Warranty

· Full Protection
· No delay battery boot up
· 100% full load burn-it test

· Work with different optional modules





SAHD1203-02B is an UPS power supply, its main output is 13.6V / 3A, while it also provides extra maximum 1A charge current. The PSU is designed based on 54.4W level. It could be used for CCTV surveillance / access control / fire alarm and other security systems.





INPUT

Voltage Range

190 - 240VAC

Frequency Range

50 - 60Hz

OUTPUT

Voltage (AC Mode)

13.6V ±2%

Voltage (Battery Mode)

Same as battery voltage

Rated Current

3A

Rated Power (Max.)

54.4W (with 1A charge current)

Efficiency (Typ.)

>85%

Ripple & Noise

<120mVp-p

Output Channel

2 channels

CHARGING

Voltage

13.6V ±2%

Current

1A (max.)

Constant voltage mode, charge current decreases when battery voltage increases.

PROTECTION

Input

2A / 250VAC fuse

Overload

3.9A ±5%

Hiccup mode, recovers automatically after fault condition is removed.

Over Voltage

16V ±5%

Hiccup mode, recovers automatically after fault condition is removed.

Battery Low Voltage

10V ±2%

PSU shuts down until AC power recovers.

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

ENVIRONMENT

Temperature

Working: -20 - 50

Storage: -30 - 80

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

LED INDICATOR

Red

On

AC power is on

Green

On

DC output is on

Yellow

Off

Battery is fully charged or no battery

Flickering

Battery is charging

SAFETY & EMC

EMC Standards

EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013

LVD Standards

EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013

DIMENTION & PACKING

Product Dimension

125 x 80 x 43mm

Packing

44.5 x 31 x 19.5cm / CTN, 7.5kg / CTN, 20pcs / CTN



Download:
