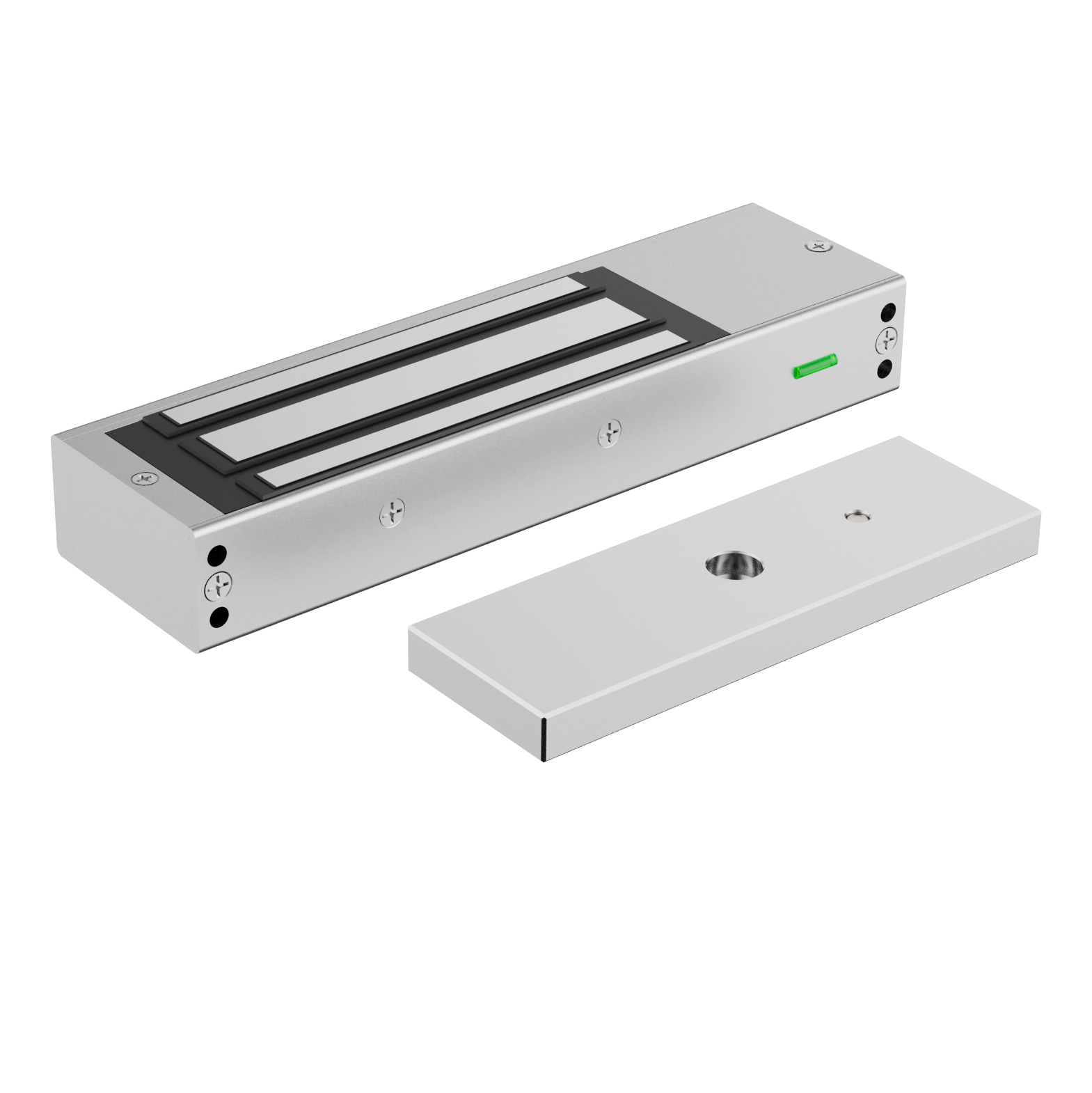

500kg 1200lbs magnetic lock

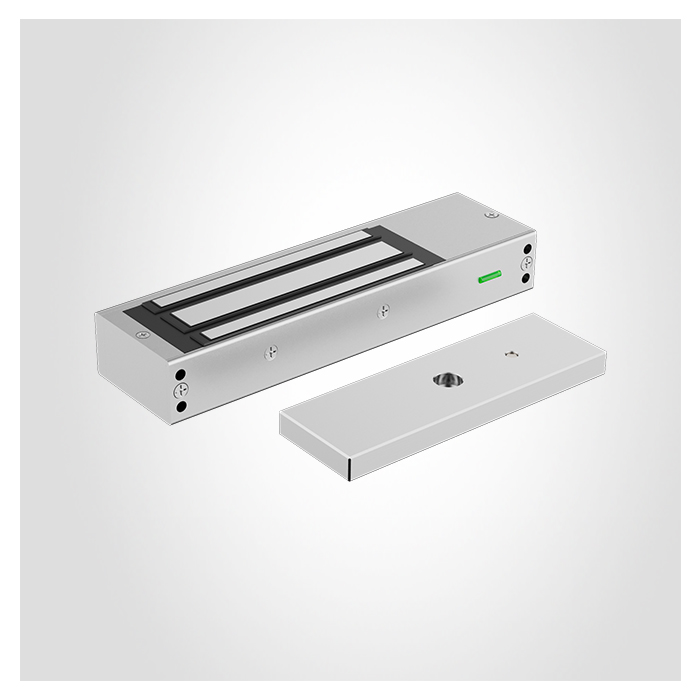

500KG Magnetic Lock

Model No.:

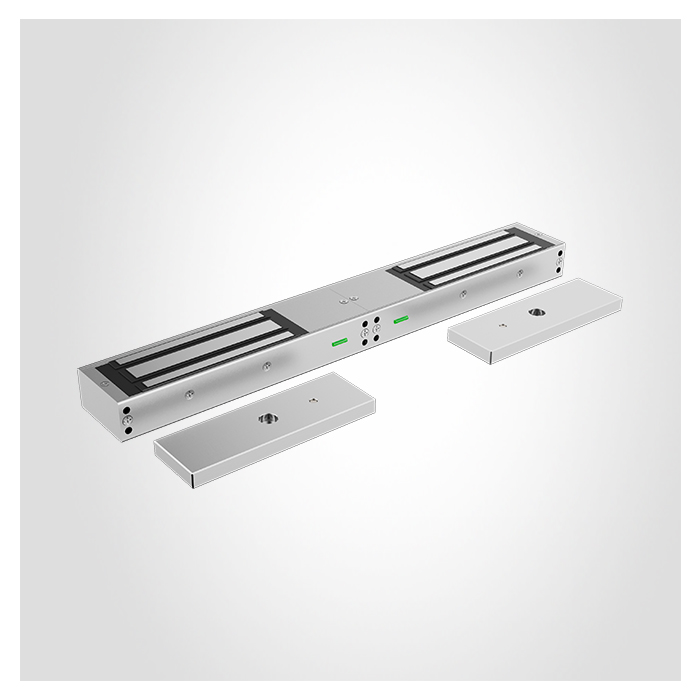

Single Lock: Double Lock
    - AL500 - AL500D
    - AL500S - AL500DS
    - AL500SR                            - AL500DSR

· Holding Force: 280KG

· Wire-free PCB design

· Two Color LED for lock status indication

· 12V/24V Input voltage selection

· Well-finished surface with user-friendly round edge

List price：￥ 0.00

Price：￥ 0.00

Model No.:
Single Lock: Double Lock
    - AL500 - AL500D
    - AL500S - AL500DS
    - AL500SR                            - AL500DSR

· Holding Force: 280KG

· Wire-free PCB design

· Two Color LED for lock status indication

· 12V/24V Input voltage selection

· Well-finished surface with user-friendly round edge

http://pmo41aede.pic26.websiteonline.cn/upload/AL500Specification.pdf

AL500 series is 500KG magnetic lock that with enough holding force. Well-finished surface with our special designed wire-free PCB can provide the

best looking of the lock. All the locks equips with 2 color LED that can indicate the lock status to users

INPUT	Voltage Range	12VDC / 24VDC
	Current Range	600mA / 300mA
Model No.	AL500	Regular 2 wires. No signal output
	AL500S	5 Wires with Lock status signal output
	AL500SR	7 Wires with Lock and Door status signal outputs
	AL500D	Regular 2 wires double lock. No signal output
	AL500DS	Double lock, 5 Wires with Lock status signal output
	AL500DSR	Double lock, 7 Wires with Lock and Door status signal outputs
ENVIRONMENT	Temperature	Working: -20 - 50℃	Storage: -30 - 80℃
	Humidity	Working: 20 - 80%RH	Storage: 10 - 90%RH
LED INDICATOR	RED	On	Door Closed
	GREEN	On	Door Opened
SAFETY & EMC	EMC Standards	EN 55032
	LVD Standards	EN 62368
DIMENSION	Single Lock	2667340mm
	Double Lock	5327340mm

Download:
