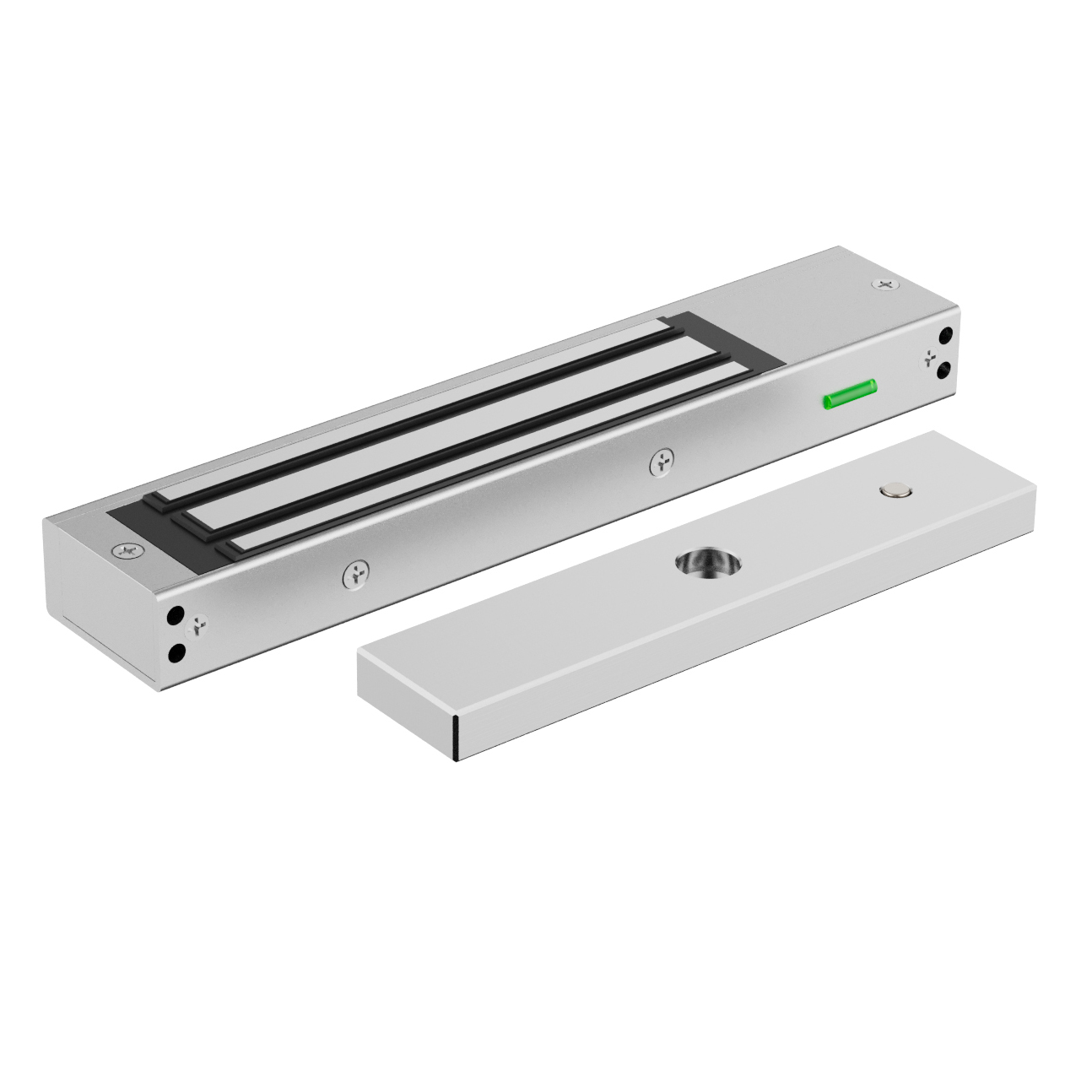

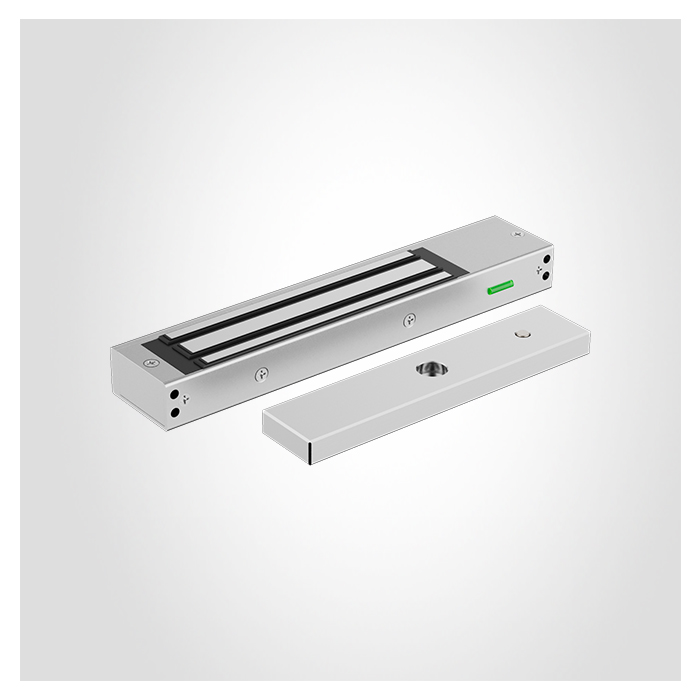

280KG Magnetic Lock

280KG Magnetic Lock

Model No.:

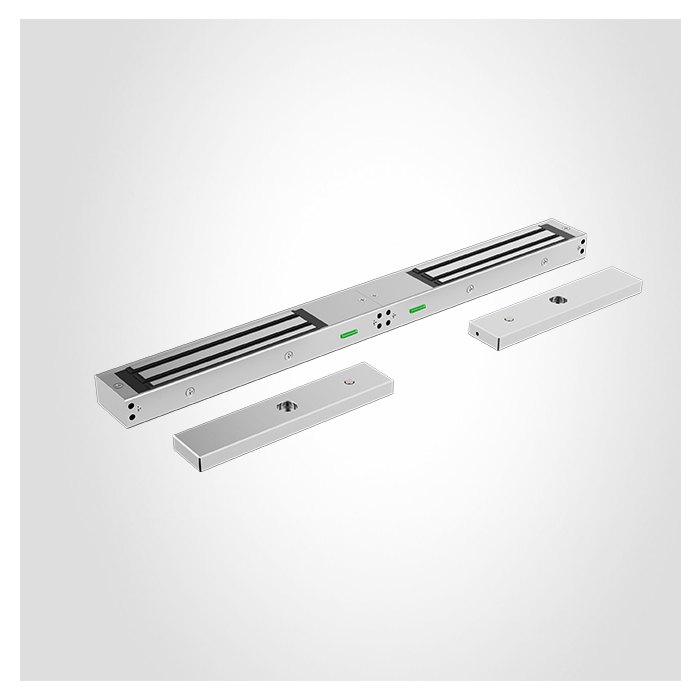

Single Lock:                         Double Lock
    - AL280                                 - AL280D
    - AL280S                              - AL280DS
    - AL280SR                            - AL280DSR

· Holding Force: 280KG

· Wire-free PCB design

· Two Color LED for lock status indication

· 12V/24V Input voltage selection

· Well-finished surface with user-friendly round edge

0.00
0.00


Model No.:
Single Lock:                         Double Lock
    - AL280                                 - AL280D
    - AL280S                              - AL280DS
    - AL280SR                            - AL280DSR

· Holding Force: 280KG

· Wire-free PCB design

· Two Color LED for lock status indication

· 12V/24V Input voltage selection

· Well-finished surface with user-friendly round edge




AL280 is 280KG magnetic lock that with enough holding force. Well-finished surface with our special designed wire-free PCB can provide the

best looking of the lock. All the locks equips with 2 color LED that can indicate the lock status to users





INPUT

Voltage Range

12VDC / 24VDC

Current Range

480mA / 240mA

Model No.

AL280

Regular 2 wires. No signal output

AL280S

5 Wires with Lock status signal output

AL280SR

7 Wires with Lock and Door status signal outputs

AL280D

Regular 2 wires double lock. No signal output

AL280DS

Double lock, 5 Wires with Lock status signal output

AL280DSR

Double lock, 7 Wires with Lock and Door status signal outputs

ENVIRONMENT

Temperature

Working: -20 - 50

Storage: -30 - 80

Humidity

Working: 20 - 80%RH

Storage: 10 - 90%RH

LED INDICATOR

RED

On

Door Closed

GREEN

On

Door Opened

SAFETY & EMC

EMC Standards

EN 55032

LVD Standards

EN 62368

DIMENSION

Single Lock

250*48*26mm

Double Lock

500*48*26mm
