4Ports POE

Model No.: POE0402S

· Fit for IP CCTV system and wireles AP device

· Easy to use and wire, transmit date signal

· Power in one RJ45 cable

· Support IEEE802.3af/at protocols

· Max 30W output power of single channel

· LED indication for each channel

· 100% full load burn-it test
· Extention mode:
  the transmission distance up to 250m


0.00
0.00


Model No.: POE0402S

· Fit for IP CCTV system and wireles AP device

· Easy to use and wire, transmit date signal

· Power in one RJ45 cable

· Support IEEE802.3af/at protocols

· Max 30W output power of single channel

· LED indication for each channel

· 100% full load burn-it test
· Extention mode:
  the transmission distance up to 250m

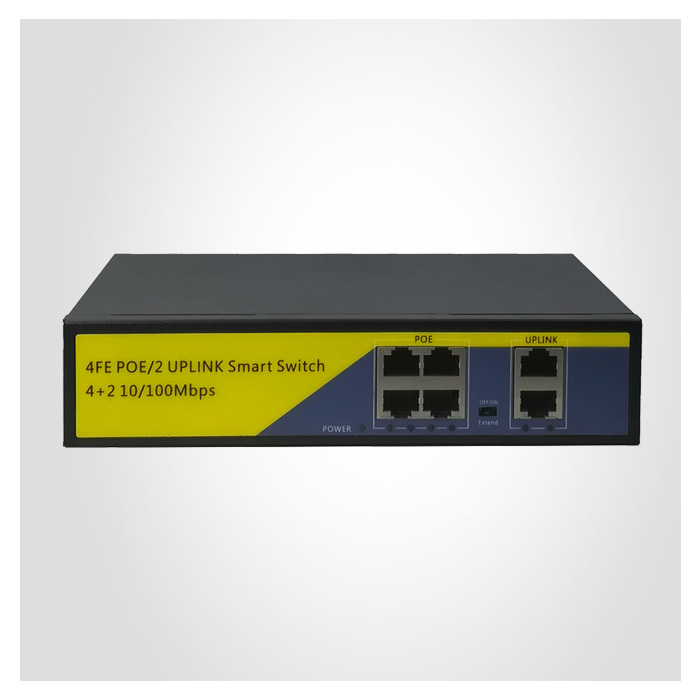

POE0402S is a 4+2 ports POE Switch.





  • Input190 – 240VAC / 50-60Hz
  • Power Supply: DC52V / 1.8A, Build-in 96W
  • Output Channel: 4CH POE + 2CH Uplink (10M/100M)
  • Transmission distance: up to 250m
  • Protocol: IEEE802.3af/at
  • Transmission: 250m@10Mbps, 100m@100Mbps
  • Dimension: 202 x 140 x 45 mm
